6. Turbulence with synthetic diagnostics workflows¶
The turbulence with synthetic diagnostics workflows consist of the HESEL and RENATE actors for turbulence simulation and synthetic diagnostics.
6.1. HESEL Documentation¶
The HESEL code is a numerical solver for the set of equations that describe the HESEL model. The HESEL model is a drift-reduced Braginskii type of two-fluid model for electron density, electron and ion pressures, and E-cross-B vorticity of a quasi-neutral plasma. The domain is a 2D slab perpendicular to the magnetic field line located at the outboard-midplane of a tokamak. The slab domain covers parts of the turbulent edge and SOL regions.
|
|

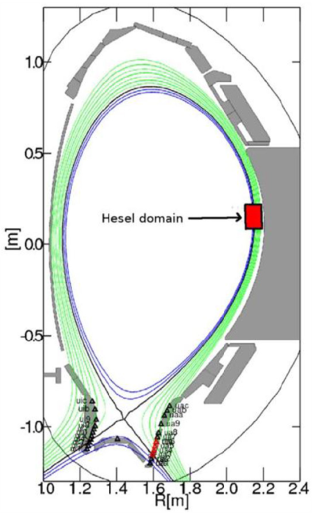

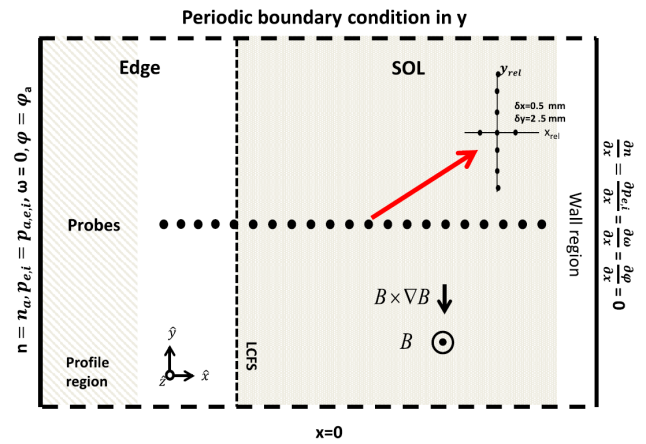

| The HESEL 2D slab domain. Images from A.H. Nielsen et al 2019 Nucl. Fusion 59 086059. | |
The solutions typically show the development of filaments (blobs) near the last-closed-flux-surface. The filaments propagate radially outwards through the SOL region, and carry heat and paticles away from the confined edge region.
|

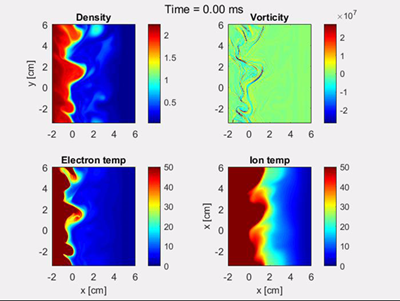

| Snapshot of solution fields for HESEL simulation |
There are plenty of publications in scientific journals based on HESEL (and its precessor ESEL) simulation data, in which the model equations are also described in detail. Below is listed a selected set of publications:
- Study of power width scaling in scrape-off layer with 2D electrostatic turbulence code based on EAST L-mode discharges
- Synthetic Edge and SOL Diagnostics: A Bridge between Experiments and Theory
- ExB mean flows in finite ion temperature plasmas
- Numerical simulations of blobs with ion dynamics
The HESEL code structure and how to run it as a stand alone code is described in HESEL as stand-alone, the workflow wrapper documentation is described in HESEL as an actor, and a guide on how to include HESEL in the KEPLER workflow is given in HESEL in the KEPLER workflow.
6.1.1. HESEL as stand-alone¶
HESEL can be run outside the workflow as a stand-alone code, where input are read from an input file and, optionally, from experimental data profiles. The output data are stored in a HDF5 datafile.
6.1.1.1. Obtaining and building HESEL¶
The HESEL source code is currenty maintained in a private Github repository (C-HESEL). For obtaining the source code please request access from ahnie@fysik.dtu.dk.
The following recipe describes how to load and build HESEL on the EUROfusion Gateway infrastructure.
On the Gateway first make sure the required modules are loaded. This can be assured by
module purge
module load cineca
module load imasenv
imasdb AUG
module unload hdf5
module load hdf5/1.8.17--intelmpi--2017--binary
For future convenience the above code block can be added to the ~/.login file and, if it does not load upon login, executed by source ~/.login.
Navigate to your Gateway public directory cd ~/public and clone the C-HESEL repository from GitHub
git clone https://github.com/PPFE-Turbulence/C-HESEL.git
Navigate into the C-HESEL directory cd C-HESEL and checkout the develop branch to work with the most recent updates
git checkout develop
Navigate into the FUTILS source directory cd FUTILS_version2.2/src and return
make clean && make -f Makefile.gateway
Navigate back to C-HESEL cd ../.. and return
make clean && make esel
Everything is now set up for you to run HESEL, which is located in C-HESEL/bin/esel.marconi.A3.
6.1.1.2. HESEL input¶
The stand-alone version of HESEL can be run either entirely from an input file, or in a setup where the initial density and temperature fields are read from an additional datafile. The probe positions for synthetic diagnogstics probes are provided in a separate datafile. All input files must be located in the same directory.
6.1.1.2.1. HESEL input¶
The HESEL input is read from a plain text file, with the input variables separated by line breaks. An example of an input file is given here. The main variables are
| Variable | Unit | Decription |
|---|---|---|
| codenametype | Machine identifier | |
| shot_no | Experiment shot number | |
| run_no | Simulation run number | |
| nx | Number of spatial grid points in x direction | |
| ny | Number of spatial grid points in y direction | |
| xmin | rhos | Minimum x-axis limit |
| xmax | rhos | Maximum x-axis limit |
| ymin | rhos | Minimum y-axis limit |
| ymax | rhos | Maximum y-axis limit |
| dt | oci^-1 | Value of discrete timestep |
| end_time | oci^-1 | Duration of simulation |
| out_time | oci^-1 | Time between small outputs |
| outmult | Number of small outputs before full fields are written out | |
| edge | rhos | Width of edge region |
| SOL | rhos | Width of SOL region |
| wall | rhos | Width of wall region |
| n0 | m^-3 | Electron density at last closed flux surface |
| te0 | eV | Electron temperature at last closed flux surface |
| ti0 | eV | Ion temperature at last closed flux surface |
| Mp | eV | Parallel Mach number |
| A | Mass number | |
| Z | Charge number | |
| Zeff | Effective charge | |
| q | Safety factor at last closed flux surface | |
| B0 | T | Magnetic field on axis |
| r0 | m | Minor radius |
| R0 | m | Major radius |
| Lp | m | Parallel connection length in the SOL region |
| Lpwall | m | Parallel connection length in the wall shadow region |
The remaining variables in the input file are better left unchanged.
| Variable | Default value |
|---|---|
| coordsys | 0 |
| gamma | 0.00 |
| sigma | 0.00 |
| bprof | 1.0 |
| damping_nt | 1 |
| dissipation_nt | |
| beta | 0 |
| mue_n_fac | 1.0 |
| mue_p_fac | 1.0 |
| mue_P_fac | 1.0 |
| mue_w_fac | 1.0 |
| ballooning | 2 |
| visc_layer_size | 0.25 |
| drift_wave_term | 2 |
| drift_wave_Te | 1 |
| radial_electric_field | 0 |
| MP | 0 |
| MP_NS | 100000 |
| MP_SR | 0.0000005 |
| hyper_factor | 0.00000 |
| sheath | 2 |
| background | 1 |
| background_n | 0.025 |
| background_t | 1.0 |
| background_time | 20 |
| ramb_up | 1 |
| ramb_up_time | 5000 |
| fp | 10 |
| fixed_time | 50 |
| init | 999 |
| init_ds | 1 |
| mean_flow | 5 |
| mean_flow_time | 0.025 |
| mean_flow_radial | 1.0 |
| mean_dissipation | 0 |
| randbedingung0 | 2 |
| bdvala0 | 0.000000 |
| bdvalb0 | 0.000000 |
| amp_random0 | 0.0001 |
| randbedingung1 | 2 |
| bdvala1 | 1 |
| bdvalb1 | 0.00 |
| amp_random1 | 0.0001 |
| randbedingung2 | 2 |
| bdvala2 | 1 |
| bdvalb2 | 0.00 |
| amp_random2 | 0.0001 |
| randbedingung3 | 2 |
| bdvala3 | 1 |
| bdvalb3 | 0.00 |
| amp_random3 | 0.0001 |
6.1.1.2.2. Profile datafile¶
The profile datafile provide the initial density and temperature field profiles, which also serve as reference profiles towards which the solution is relaxed in the innermost edge region of the HESEL domain. The datafile must have the filename exp_profiles.dat and an example can be found here.
The datafile consists of four space-separated columns of data, so that each row constitute a datapoint. In each datapoint is the following data
| Column | Variable | Unit |
|---|---|---|
| 1 | Radial position with LCFS at 0 | m |
| 2 | Electron density | 10^19 m^-3 |
| 3 | Electron temperature | eV |
| 4 | Ion temperature | eV |
6.1.1.2.3. Probe positions¶
The HESEL code will produce a set of default output data described in HESEL output. Additional temporally highly resolved 1D data can be added from synthetic probes located in a row througout the domain. They are poloidally centered in the domain and located with a radial distance of 1 rhos. In the probe datafile, which must be named myprobe.dat, is specified the number of tips and their relative location, and the fields measured. An example of a probe datafile is found here.
The format must follow that of the provided example. Each tip has a specified relative position to the probe position in units of grid point spacing. I.e., the block
# -------------------------------------------------------------------
# TIP1
# -------------------------------------------------------------------
@TIP1 10.0 0.0 hdf5
density
vorticity
temperature
potential
velocity_radial
velocity_poloidal
adds a probe-tip at 10 grid points radially outwards and at the same poloidal position as that of the probe. It outputs the electron density (density), E-cross-B vorticity (vorticity), electron temperature (temperature), the electrostatic potential (potential), radial velocity (volocity_radial), and poloidal velocity (velocity_poloidal) at the specified gridpoint. All output are in Bohm-normalized units.
6.1.1.3. HESEL code structure¶

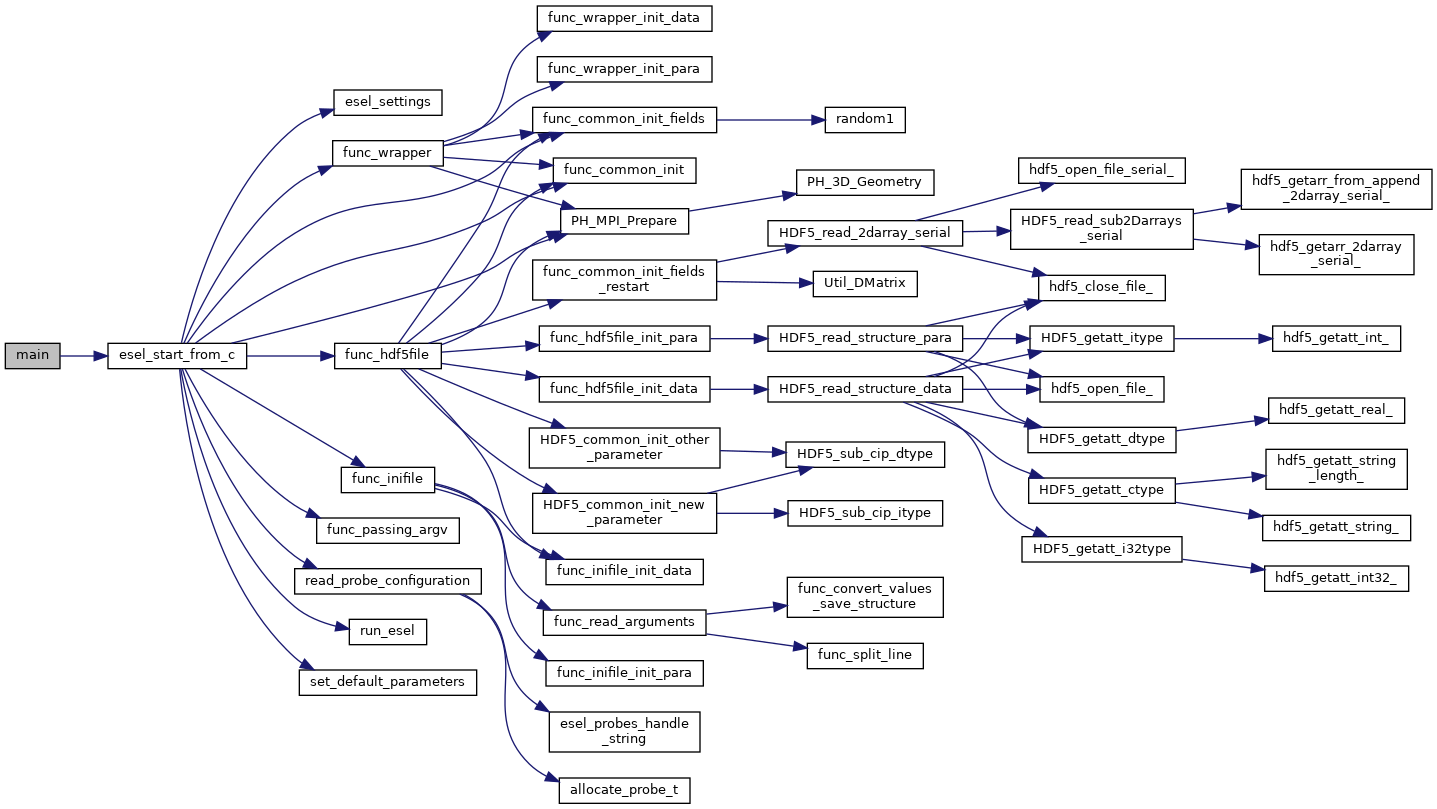

The HESEL stand-alone code structure is graphed below
|
| HESEL structure graph |
The workflow of the top level functions are described in the following. The function description is meant to give an high-lelvel overview of the workflow and supplement the in-code comments.
main(int argc, char *argv[])
The main function is a wrapper for passing the programme arguments argc and argv to the esel_start_from_c function. The variable argv is a character list of programme arguments and argc is an integer that denote the number of items in argv.
esel_start_from_c(itype argc, ctype **argv)
The esel_start_from_c function contains the core workflow of the solver. It creates the two structures, data and para, that, together with argc and argv, are passed through the HESEL workflow.
Everything up to the run_esel function is initialization of data, MPI, etc.
The programme arguments are interpreted and applied in func_passing_argv
func_passing_argv(argc, argv, &data, ¶)
The function determine if the simulation is starting from previous simulation data or not, by checking, if the flag -restart is in the programme arguments. It iterates through the other arguments; if -I the input data are to be loaded from an ini-file, if -H the input data are to beloaded from an HDF5 file, and if -wrapper the data are to passed from a programme wrapper. The input file option is stored in the para structure and applied after the set_default_parameters function.
and the set_default_parameters function is called.
set_default_parameters(&data,¶)
This function is deprecated and does not alter the data and para structures.
Depending on where the input parameters are stored, one of three functions are called. The information of input file type is set in the para structure by the func_passing_argv function. If the input are stored in a c-file func_wrapper is called, in an ini-file func_inifile is called, and in a HDF5 file func_hdf5file is called.
func_wrapper(argc, argv, &data, ¶)
Checks if the restart option is set to true in the para structure; if so, the code exits, as that option is not compatible with the wrapper setup.
The function calls a number of subfuntions to initialize the para and data structures from the input given by the wrapper, that would otherwise be read from an ini-file as described in HESEL input. All data are appended to the para and data structures.
func_inifile(argc, argv, &data, ¶)
Checks if the restart option is set to true in the para structure; if so, the code exits, as that option is not compatible with the inifile setup.
The function calls a number of subfuntions to initialize the para and data structures from the input file described in HESEL input. All data are appended to the para and data structures.
func_hdf5file(argc, argv, &data, ¶)
The function calls a number of subfuntions to initialize the para and data structures from the input given by a HDF5 file, that would otherwise be read from an ini-file as described in HESEL input. The data are stored in the /params/structure_data and /params/structure_param groups described in HESEL output. All data are appended to the para and data structures.
The data and para structures are initialized further in func_common_init
func_common_init(&data, ¶)
The current time variables are stored in the para structure, and the data attribute range is set from the domain limits stored in para. The function checks the para attribute coordsys to determine the labels on the data attributes coordsys and dim_label.
and settings defined in esel_settings.
esel_settings(&data, ¶)
Derived parameters are stored in the para and data structures. This includes grid spacings, output switches, datafile name (based on the para attributes codename, shot_no and run_no), and computer specific attributes.
The MPI communicaters and parameters are set up in PH_MPI_Prepare
PH_MPI_Prepare(&data,¶)
The geometry is specified for the MPI. Periodic boundaries are set and neighbouring coordinates are defined for parallelization in the x-direction.
and fields are initialized in func_common_init_fields.
func_common_init_fields(&data, ¶)
The solution fields are initialized with random noise. If no input files are provided the solution fields are assigned default initial profiles.
The probe configuration, for obtaining high temporally resolved data at probe positions, are loaded in the function read_probe_configuration.
read_probe_configuration()
The probe configuration is obtained from the probe configuration file Probe positions. A structure array of pype probe_t is created to store the probe information.
Everything is now initialized and the system of differential equations is solved in run_esel
run_esel(&data, ¶)
The first half of the run_esel function finalizes the initialization; variables and fields are allocated and some loaded from the data and para structures. The logarithm of boundary values and fields is calculated for the solution fields. The field background values are derived. The ion temperature ramp-up scheme is initialized, and boundary values are applied.
The HDF5 output file is created and initial data stored in the para and data structures are written to this.
The second half of the run_esel function consists of a loop which iterates through the time range in steps of dt. The time loop has the following steps:
Print datasets to the HDF5 output file
At specified time intervals the soulution fields and derived fields (w.g. profiles and integrated values) are written to the output file.
The fields are testet for nan values
The ion temperature is ramped up
If a ramp-up scheme is chosen for the ion temperature the increase in ion edge pressure profile is executed at this stage, and the inner boundary condition updated accordingly.
The forward time step values of the (logarithmic) solution fields are calculated
In the order; generalized vorticity, density, electron temperature, ion temperature. After each time step is calculated the step is made and dissipation applied.
The solution fields are derived
From their log values, and the vorticity and electrostatic potential is calculated from the generalized forticity.
The higly resolved probe data is written
Running avarages, turbulent energy, particle flux are calculated
And the energies are written to the output file
The program is terminated by an exit() command after the time loop termination condition is reached.
6.1.1.4. Running a HESEL simulation¶
HESEL is run in from the data directory, containing the input file (and optional data files) using mpirun. In the data directory return
mpirun -np=<number_of_processors> <path_to_esel> -I <input_file_name>
Here <number_of_processors> is the number of processors to run the code and must be a power of 2, <path_to_esel> is the path to the compiled HESEL code conventionally located in C-HESEL/bin/esel.marconi.A3 for a MARCONI install, and <input_file_name> is the name of the input file described in HESEL input.
6.1.1.5. HESEL output¶
For a run with an input file filename HESEL produces two output files; filename.erh and filename.h5. The .erh file reviews the run settings and displays key parameters for the simulation. The full simulation data output is stored in the hdf5 file.
The structure of the output datafile filename.h5 is
/data
/data/var0d
/data/var1d
/data/var1d/fixed-probes
/data/var2d
/data/var2d/grid
/data/var3d
/data/xanimation
/documentation
/equil
/params
/params/structure_data
/params/structure_param
The content of the groups are described in detail below.
data
The data group stores the subgroups with the solution data and derived data that are of interest. The data are grouped into the number of spatial dimensions of the data, e.g., the var1d group contains data of one spatial dimension (e.g., temporal evolution of profiles). The data subgroups are
var0d This group contains derived data of zero spatial dimension.
Variable Dimensions Description SOL_density end_time/out_time Spatially iend_time/out_timeegrated SOL density SOL_energy_elec end_time/out_time Spatially iend_time/out_timeegrated SOL electron energy SOL_energy_ion end_time/out_time Spatially iend_time/out_timeegrated SOL ion energy Te0 end_time/out_time Electron reference temperature at LCFS Ti0 end_time/out_time Ion reference temperature at LCFS cflp end_time/out_time cflr end_time/out_time dEdt end_time/out_time energy_elec end_time/out_time Spatially iend_time/out_timeegrated electron energy for the domain energy_gkin end_time/out_time energy_ion end_time/out_time Spatially iend_time/out_timeegrated ion energy for the domain energy_kin end_time/out_time energy_kin_0 end_time/out_time energy_kin_f end_time/out_time energy_out_P end_time/out_time energy_out_p end_time/out_time pe_curv_f end_time/out_time pe_curv_pi end_time/out_time pi_curv_f end_time/out_time shear end_time/out_time total_density end_time/out_time Spatially iend_time/out_timeegrated density for the domain total_energy end_time/out_time Spatially integrated total energy for the domain var1d This group contains derived data of one spatial dimension.
Variable Dimensions Description CLSOED field line Nx Array with 1 in edge region, 0 in SOL region Density-Prof end_time/(out_time*otmult) x Nx Low temporally resolved density profile Density-inst end_time/out_time x Nx High temporally resolved density profile Diff-Ion-Flux-Tgrad(n)-inst end_time/out_time x Nx Ti*grad(n) profile Diff-Ion-Flux-grad(P)-inst end_time/out_time x Nx grad(Pi) profile Diff-Ion-Flux-ngrad(T)-inst end_time/out_time x Nx n*grad(Ti) profile Diff-den-Flux-grad(n)-inst end_time/out_time x Nx grad(n) profile Diff-ele-Flux-grad(p)-inst end_time/out_time x Nx grad(Pe) profile Ele-Pres-Prof end_time/(out_time*otmult) x Nx Low temporally resolved electron pressure profile Ele-Pres-inst end_time/out_time x Nx High temporally resolved electron pressure profile Ele-Temp-Prof end_time/(out_time*otmult) x Nx Low temporally resolved electron temperature profile Ele-Temp-inst end_time/out_time x Nx High temporally resolved electron temperature profile Flux-P-tur end_time/(out_time*otmult) x Nx Flux-P-tur-inst end_time/(out_time*otmult) x Nx Flux-T-tur end_time/(out_time*otmult) x Nx Flux-heat-P-tur end_time/(out_time*otmult) x Nx Flux-heat-p-tur end_time/(out_time*otmult) x Nx Flux-p-tur end_time/(out_time*otmult) x Nx Flux-p-tur-inst end_time/(out_time*otmult) x Nx Flux-pres_tur end_time/(out_time*otmult) x Nx Flux-t-tur end_time/(out_time*otmult) x Nx Gen-Vort-Prof end_time/(out_time*otmult) x Nx Low temporally resolved generalized vorticity profile Gen-Vort-inst end_time/out_time x Nx High temporally resolved generalized vorticity profile Ion-Pres-Prof end_time/(out_time*otmult) x Nx Low temporally resolved ion pressure profile Ion-Pres-inst end_time/out_time x Nx High temporally resolved ion pressure profile Ion-Temp-Prof end_time/(out_time*otmult) x Nx Low temporally resolved ion temperature profile Ion-Temp-inst end_time/out_time x Nx High temporally resolved ion temperature profile OPEN field line Nx Array with 0 in edge region, 1 in SOL region Pot-Prof end_time/(out_time*otmult) x Nx Low temporally resolved electrostatic potential profile Pot-inst end_time/out_time x Nx High temporally resolved electrostatic potential profile Pressure-stress1-inst end_time/out_time x Nx Pressure-stress2-inst end_time/out_time x Nx Pressure-stress3-inst end_time/out_time x Nx Pressure-work1-inst end_time/out_time x Nx Pressure-work2-inst end_time/out_time x Nx Pressure-work3-inst end_time/out_time x Nx Reynolds-stress-inst end_time/out_time x Nx Reynolds-work-inst end_time/out_time x Nx Tur-par-Flux end_time/(out_time*otmult) x Nx Tur-par-Flux-inst end_time/out_time x Nx fp_P Nx fp_fluc Nx fp_mean Nx fp_n Nx fp_p Nx fp_w Nx gf-inst end_time/out_time x Nx mean_vp end_time/(out_time*otmult) x Nx mean_w end_time/(out_time*otmult) x Nx rcor Nx sheath_profile end_time/(out_time*otmult) x Nx Redundant visc_P end_time/(out_time*otmult) x Nx visc_n end_time/(out_time*otmult) x Nx visc_p end_time/(out_time*otmult) x Nx visc_w end_time/(out_time*otmult) x Nx - fixed-probes
This group contains temporally higly resolved spatial data at probe postions. Below is given an example for probes with only one probe tip (TIP0). For multiple probe tips the output data list expands accordingly.
Variable Dimensions Description TIP0_density end_time/10 x xmax Density at probe position at very high temporal resolution TIP0_potential end_time/10 x xmax Electrostatic potential at probe position at very high temporal resolution TIP0_temperature end_time/10 x xmax Electron temperature at probe position at very high temporal resolution TIP0_temperature_i end_time/10 x xmax Ion temperature at probe position at very high temporal resolution TIP0_velocity_poloidal end_time/10 x xmax Poloidal velocity at probe position at very high temporal resolution TIP0_velocity_radial end_time/10 x xmax Radial velocity at probe position at very high temporal resolution TIP0_vorticity end_time/10 x xmax Vorticity at probe position at very high temporal resolution
- var2d
This group contains the solution data (Density, Gen_Vorticity, Ion_Pressure, Pressure) and derived data of (mostly) two spatial dimensions.
Variable Dimensions Description Density end_time/(out_time*otmult) x Nx x Ny Density Gen_Potential end_time/(out_time*otmult) x Nx x Ny Generalized potential Gen_Vorticity end_time/(out_time*otmult) x Nx x Ny Generalized vorticity Ion_Pressure end_time/(out_time*otmult) x Nx x Ny Ion pressure Ion_temp end_time/(out_time*otmult) x Nx x Ny Ion temperature Magnetic Field (b_0) Nx Magnetic field Potential end_time/(out_time*otmult) x Nx x Ny Electrostatic potential Pressure end_time/(out_time*otmult) x Nx x Ny Electron pressure Temperature end_time/(out_time*otmult) x Nx x Ny Electron temperature Vorticity end_time/(out_time*otmult) x Nx x Ny Vorticity - grid This group contains the two dimensional spatial grid.
Variable Dimensions Description x Nx x Ny x-grid y Nx x Ny y-grid var3d
Currently no data are stored in this group.
xanimation This group contains the solution data (and the electric potential) at high spatial, low temporal resolution, aimed for visual representation of the data.
Variable Dimensions Description density end_time/out_time x Nx/4 x Ny/4 High temporal, low spatial resolved density (for animations) electron_pressure end_time/out_time x Nx/4 x Ny/4 High temporal, low spatial resolved electron pressure (for animations) ion_pressure end_time/out_time x Nx/4 x Ny/4 High temporal, low spatial resolved ion pressure (for animations) potential end_time/out_time x Nx/4 x Ny/4 High temporal, low spatial resolved electrostatic potential (for animations) vorticity end_time/out_time x Nx/4 x Ny/4 High temporal, low spatial resolved vorticity (for animations)
documentation
The documentation group contains two datafiles, which are merely copies of the input files.
Filename Description myprobe.dat Copy of myprobe.dat datafile described in Probe positions. run.ini Copy of input file described in HESEL input. equil
Currently no data are stored in this group.
params
This group contains two subgroups with parameter data that are either defined in, or derived directly from, the input file. These data are mainly for the purpose of restarting a simulation from an existing HDF5 output file.
structure_data
Variable Dimensions Description cwd 1 Current working directory desc 1 Redundant dims0 1 Same as ny dims1 1 Number of x gridpoints dims2 1 Redundant elements0 1 Same as ny elements1 1 Same as nx elements2 1 Redundant lnx 1 Same as nx lny 1 Same as ny lnz 1 Redundant maschine 1 Operating system number 1 Redundant nx 1 Number of x gridpoints per processor ny 1 Number of y gridpoints nz 1 Redundant offx 1 offy 1 offz 1 range00 1 Lower y boundary [rhos] range01 1 Upper y boundary [rhos] range10 1 Lower x boundary [rhos] range11 1 Upper x boundary [rhos] range20 1 Redundant range21 1 Redundant rank 1 2 for 2D code (only option) structure_param
Variable Dimensions Description A 1 Given in HESEL input B0 1 Given in HESEL input Lp 1 Given in HESEL input Lpwall 1 Given in HESEL input MP 1 Given in HESEL input MP_NS 1 Given in HESEL input MP_SR 1 Given in HESEL input Mp 1 R0 1 Given in HESEL input SOL 1 Given in HESEL input Te0 1 Given in HESEL input Ti0 1 Given in HESEL input Z 1 Given in HESEL input Zeff 1 Given in HESEL input adv_P 1 adv_n 1 adv_p 1 adv_w 1 amp_random0 1 Given in HESEL input amp_random1 1 Given in HESEL input amp_random2 1 Given in HESEL input amp_random3 1 Given in HESEL input background 1 Given in HESEL input background_n 1 Given in HESEL input background_t 1 Given in HESEL input background_time 1 Given in HESEL input bdval00 1 bdval01 1 bdval10 1 bdval11 1 bdval20 1 bdval21 1 bdval30 1 bdval31 1 bdval40 1 bdval41 1 beta 1 Given in HESEL input boundary0 1 boundary1 1 boundary2 1 boundary3 1 bprof 1 Given in HESEL input con_P 1 con_p 1 coordsys 1 Given in HESEL input cs 1 Ion sound speed [rhos w_ci] damping_nt 1 Given in HESEL input dissipation_nt 1 Given in HESEL input dkx 1 dky 1 dkz 1 drift_wave_Te 1 Given in HESEL input drift_wave_term 1 Given in HESEL input dt 1 Given in HESEL input dx 1 x grid point spacing [rhos] dy 1 y grid point spacing [rhos] dz 1 Redundant edge 1 Given in HESEL input end_time 1 Given in HESEL input energy 1 fixed_time 1 fp 1 Given in HESEL input gamma 1 Given in HESEL input gradB 1 hyper_factor 1 Given in HESEL input init 1 Given in HESEL input init_ds 1 Given in HESEL input lamda 1 limiter 1 mean_dissipation 1 mean_flow 1 mean_flow_radial 1 mean_flow_time 1 mue_P 1 mue_P_fac 1 Given in HESEL input mue_n 1 mue_n_fac 1 Given in HESEL input mue_p 1 mue_p_coupling 1 mue_p_fac 1 Given in HESEL input mue_t 1 mue_t_fac 1 mue_w 1 mue_w_fac 1 Given in HESEL input ne0 1 nprof 1 offset 1 otmult 1 Given in HESEL input out_time 1 Given in HESEL input phiprof 1 q 1 Given in HESEL input r0 1 Given in HESEL input ramb_up 1 Given in HESEL input ramb_up_time 1 Given in HESEL input rho_e 1 Electron thermal gyro-radius [m] rho_i 1 Ion thermal gyro-radius [m] rho_s 1 Cold-ion hybrid thermal gyro-radius [m] run_no 1 Given in HESEL input sheath 1 shot_no 1 Given in HESEL input sigma 1 Given in HESEL input time 1 tprof 1 w_ce 1 Electron cyclotron frequency [s^-1] w_ci 1 Ion cyclotron frequency [s^-1] wall 1 Given in HESEL input xmax 1 Given in HESEL input xmin 1 Given in HESEL input ymax 1 Given in HESEL input ymin 1 Given in HESEL input
6.1.2. HESEL as an actor¶
In this part HESEL is build as a library. First ensure that you have access to the cpo_interface SVN repository. In a browser load
https://gforge-next.eufus.eu/
and ask for a new password if you cannot login. If you do not have access contact ahnie@fysik.dtu.dk. On the EUROfusion Gateway open a terminal, change directory to (suggested) your public folder. Download the C-HESEL repository by following the guide in HESEL as stand-alone. In the C-HESEL repository check out the branch called WPCD-workflow-dev
git checkout WPCD-workflow-dev
and make sure that the commit 40da0f4dcb9aa6063d500f6c4fa824071042b77e made on 23.6.2021 is included. Now, in the C_HESEL directory return
cd FUTILS_version2.2/src
make -f Makefile.gateway clean
make -f Makefile.gateway
cd ../..
make clean
make esel
make libhesel
After that, and still in you public folder, return the following
svn co https://gforge-next.eufus.eu/svn/cpo_interface
to checkout the wrapper repository. Now enter the directory
cd cpo_interface/tags/3.31.0/ids
and edit the file Makefile.gateway. In this file you will find four lines that contain a reference to a path belonging to the user g2ahnie. Those lines are line no. 11, 13, 20 and 23. Change the path in those lines to that which points to the corresponding files in the C-HESEL repository in your public directory. Save the edit, quit the editor and in the terminal return
make -f Makefile.gateway clean
make -f Makefile.gateway libhesel
to make the HESEL library libheselwrapper.a.

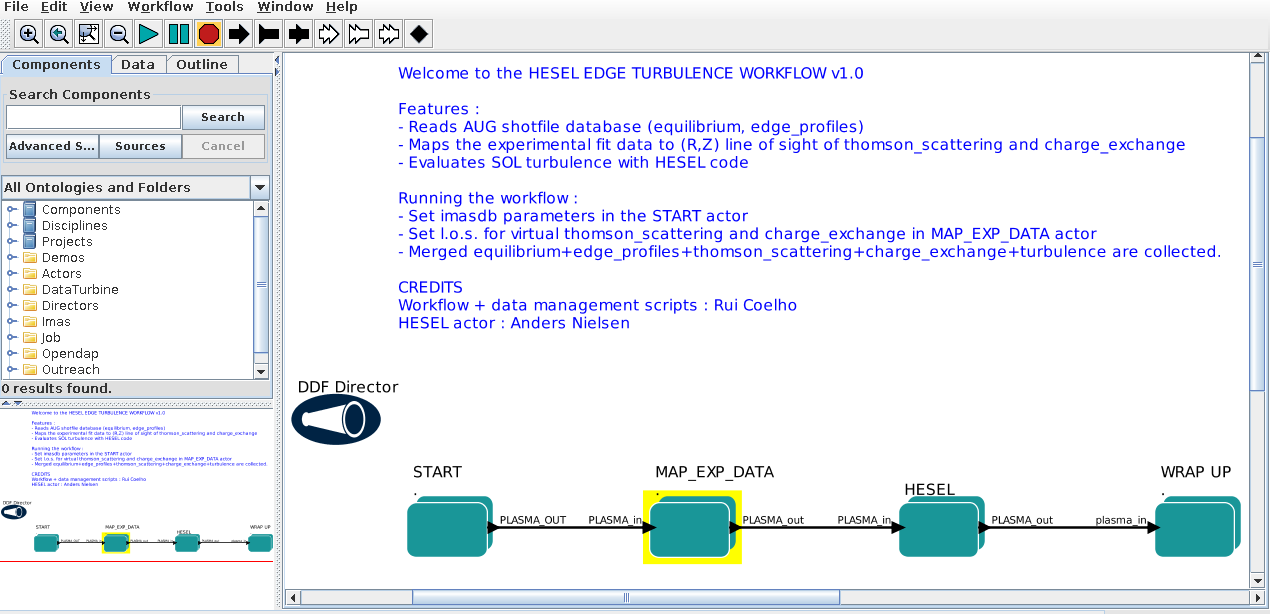

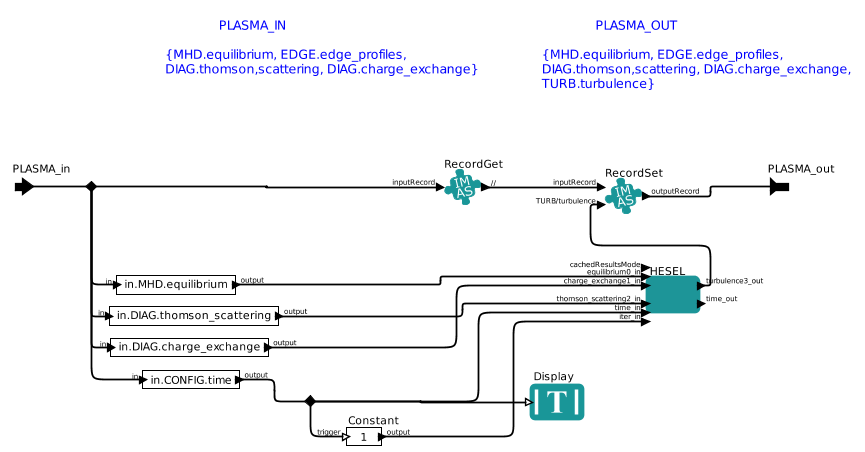

6.1.3. HESEL in the KEPLER workflow¶
On the EUROfusion Gateway build the HESEL library as described in HESEL as an actor. Open a terminal and return the following to load the required modules
module purge
module load cineca
module load imasenv/3.31.0/rc
module unload itm-hdf5 hdf5
module load itm-hdf5/1.8.17/intel/17.0/mpi
module switch kepler/2.5p5-3.1.1_3.31.0_rc
module switch imas-fc2k/4.13.0
If not installed already, install Kepler by returning
kepler_install <username>
where <username> is your usename for the Gateway and allow for the directory to be created if prompted for this. After installing Kepler load it by
kepler_load <username>
A number of directories have to be moved to other partitions and replaced by symbolic links. In the terminal return the following
cd ~
mkdir work (if it does not already exist)
mkdir work/KEPLEREXECUTION (if it does not already exist)
cd public
mv imasdb ../work/
ln -s ../work/imasdb imasdb
ln -s ../work/KEPLEREXECUTION KEPLEREXECUTION
And an IMAS database initiated
imasdbs -u <username>
In the terminal return
fc2k
This will open a new window to generate a Kepler actor.
|

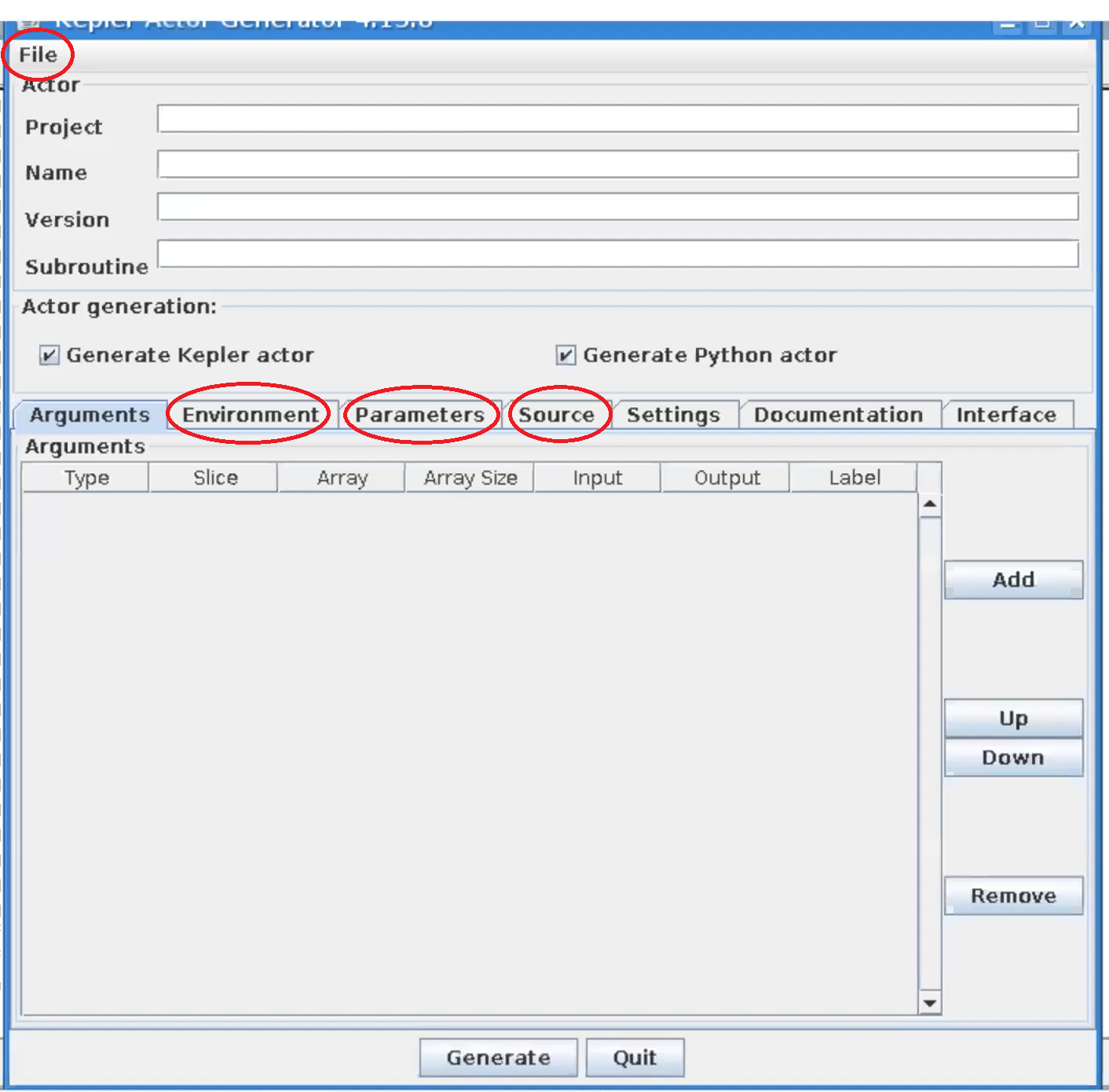

| Kepler actor generator window |
In the file menu click open and navigate to the file (most likely located in) public/cpo_interface/tags/3.31.0/scripts/Actors/HESEL_1.0.0.xml and click open. In the tabs Environment, Parameters, and Source, if applicable, change the paths that belong to the user g2ahnie to the corresponding paths in your system. Click Generate to generate the actor from the wrapper that calls the HESEL code.
In the terminal run KEPLER by returning
kepler
this will open a new window. In KEPLER open the HESEL actor that was just generated in file -> open to load the workflow.
|
| HESEL workflow in KEPLER |
In the first actor, START, constrols the workflow input. By double clicking the box a window pops up which allows for the user to edit the workflow input parameters
|

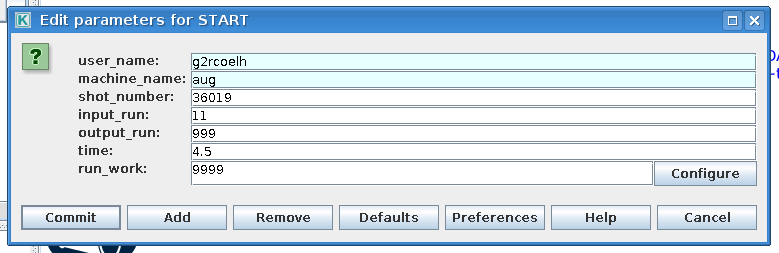

| Edit HESEL workflow input parameters |
The input have the following descriptions
Variable Description user_name Name of user from which experiment imas database are loaded machine_name Short name of device shot_number Machine shot number input_run Input run number for HESEL realisation output_run Output run number for HESEL time Time at which experimental data are pulled
The second actor, MAP_EXP_DATA, maps the input profiles that HESEL will use as initial conditions and reference profiles in the forcing region. If you double click the box the following editing window is opened
|

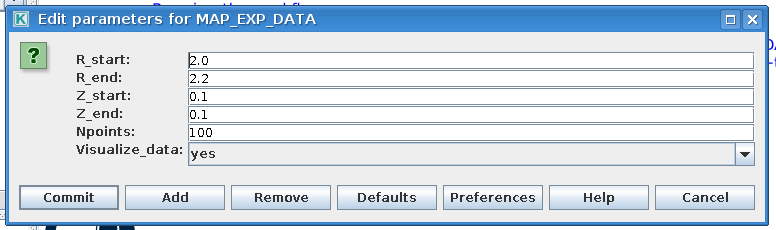

| Edit HESEL workflow data mapping parameters |
The input have the following descriptions
Variable Description R_start Radial profile coordinate starting position R_end Radial profile coordinate ending position Z_start Longitudinal profile coordinate starting position Z_end Longitudinal profile coordinate ending position Npoints Grid resolution Visualize_data Whether to visualize the profile data or not
Note that if yes is selected for Visualize_data, the data will be displayed as below and the workflow stops.
|

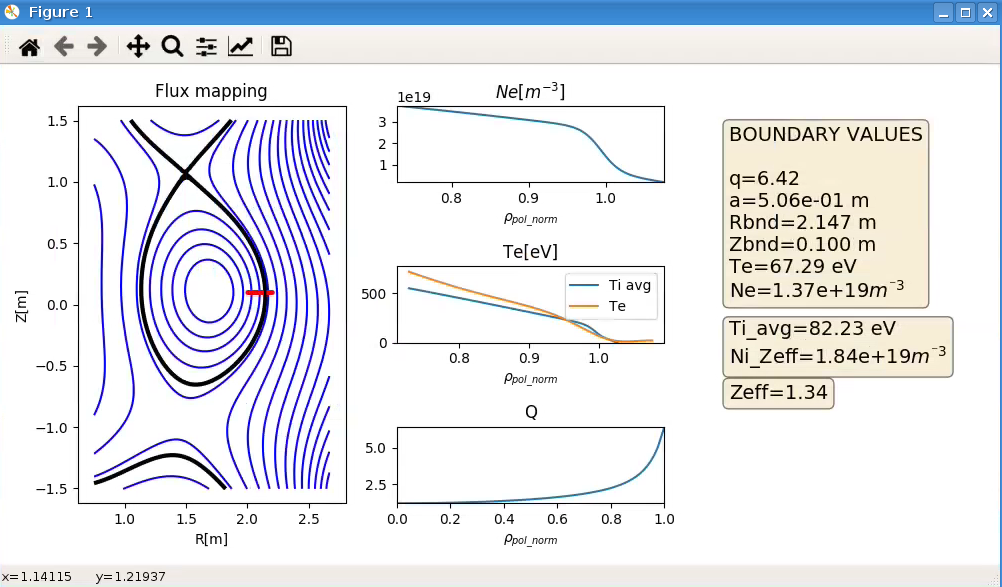

| Example of resulting window when Visualize_data is selected |
To run the workflow beyond the MAP_EXP_DATA actor the value for Visualize_data has to be no when the workflow is initiated.
The third, and last editable, actor is the HESEL actor. Right-click this box and select Open Actor to edit the submission script and non-predetermined HESEL input parameters. The following window appears when the actor is opened.
|
| Workflow within the HESEL actor |
The only relevant actor within this sub-workflow is that called HESEL. When this box is double clicked the following window appears
|

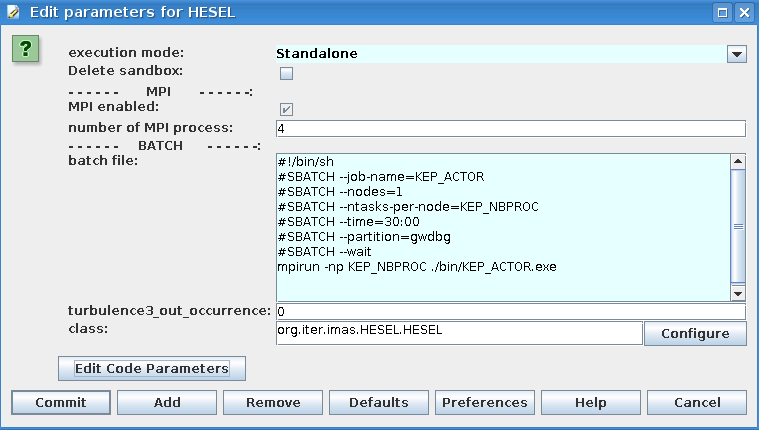

| The HESEL actor where submission data can be edited |
The batch file appears in this window and it is possible to adjust this to alter submission data. If the button Edit Code Parameters is clicked the following option to edit the (mainly numerical) HESEL input parameters that cannot be determined from experimental data appears
|
| The non-predetermined HESEL input parameters can be edited |
Where the descriptions of the parameters is given in HESEL input.
When the input parameters for all actors of the workflow are set the HESEL EDGE TURBULENCE WORKFLOW is initated by pressing the green triangle button in the outermost workflow.
The output data are stored in the ~/work/imasdb folder according to the structure described in HESEL output.
